Code, input and output for reproducing RNAseq images in manuscript

DotPlotVolcano.R

+
+# code for reproducing figures in paper
+# AIM: create a dotplot / heatmap with genes of interest present in the attachment
+# facets by category of interest shown in the excel
+
+# loading libraries ####
+library(ggplot2)
+library(openxlsx)
+library(ggrepel)
+library(DESeq2)
+library(reshape2)
+library(RColorBrewer)
+library(scales)
+
+# loading genelist file and create a dataframe ####
+mydata <- read.xlsx(xlsxFile = "GeneList_Fig2A.xlsx")
+mydata$Cluster[2:4] <- "Integrins"
+mydata$Cluster[6:12] <- "Actin regulators"
+mydata$Cluster[14:21] <- "Tubulin regulators"
+mydata$Cluster[23:28] <- "Focal adhesion"
+mydata$Cluster[30:32] <- "Notch signaling"
+mydata$Cluster[34:35] <- "WNT signaling"
+mydata$Cluster[37:45] <- "HSC"
+
+# remove double entry AKT3
+mydata <- subset(mydata, Gene != "AKT3.1")
+mydata$Cluster <- gsub(pattern = "HSC", replacement = "HSC related", x = mydata$Cluster)
+saveRDS(object = mydata, file = "Gene_list.rds")
+
+# read data analysis input ####
+
+myexpress <- readRDS("20240208_095535_DGE.rds")
+myexpress.bck <- myexpress
+dge_res <- myexpress$deseq$dge_res
+DESeq.rlog <- rlogTransformation(myexpress$deseq$ds, blind = TRUE)
+colannotations <- myexpress$deseq$sample_info
+
+# subsetting matrix of rlog counts according to genes of interest ####
+
+normcounts <- DESeq2::counts(object = myexpress$deseq$ds, normalized = T)
+normacounts_NE <- normcounts[,rownames(colannotations)]
+
+goi_expr <- as.matrix(normacounts_NE[mydata$Gene,])
+
+## Version with means ####
+
+goi_expr_means_melt <- melt(goi_expr)
+goi_expr_means_melt_annot <- merge.data.frame(goi_expr_means_melt, colannotations, by.x = "Var2", by.y = 0, sort = F)
+goi_expr_means_melt_annot_2 <- goi_expr_means_melt_annot %>% group_by(Var1, condition) %>% summarise(MeanVal = mean(value))
+goi_expr_means <- dcast(goi_expr_means_melt_annot_2, formula = Var1 ~ condition , value.var = "MeanVal")
+rownames(goi_expr_means) <- goi_expr_means$Var1
+goi_expr_means$Var1 <- NULL
+
+goi_expr_scaled_2 <- t(scale(t(goi_expr_means)))
+goi_expr_df_2 <- as.data.frame(goi_expr_scaled_2)
+goi_expr_df_2$Gene <- rownames(goi_expr_df_2)
+goi_expr_df_2_all <- merge.data.frame(goi_expr_df_2, mydata, by = "Gene", all.x = T, sort = F)
+goi_expr_melt_2 <- melt(data = goi_expr_df_2_all, id.vars = c("Gene","Cluster"))
+
+goi_expr_melt_2$Timepoint <- gsub(x = goi_expr_melt_2$variable, pattern = "^.*NE", replacement = "")
+goi_expr_melt_2$Condition <- substr(x = goi_expr_melt_2$variable, start = 1, stop = 2)
+goi_expr_melt_2$Cluster <- factor(goi_expr_melt_2$Cluster, levels = unique(goi_expr_melt_2$Cluster))
+
+
+goi_expr_melt_2_degannot <- merge.data.frame(x = goi_expr_melt_2,y = DEGs_d4, by = "Gene", all.x = T, sort = F)
+goi_expr_melt_2_degannot$isDEGd4[is.na(goi_expr_melt_2_degannot$isDEGd4)] <- "notDEG"
+goi_expr_melt_2_degannot <- merge.data.frame(x = goi_expr_melt_2_degannot,y = DEGs_d7, by = "Gene", all.x = T, sort = F)
+goi_expr_melt_2_degannot$isDEGd7[is.na(goi_expr_melt_2_degannot$isDEGd7)] <- "notDEG"
+
+goi_expr_melt_2_degannot$isDEG <- "noDEG"
+goi_expr_melt_2_degannot$isDEG[which(goi_expr_melt_2_degannot$isDEGd4 == "isDEG" & goi_expr_melt_2_degannot$Timepoint == "d4")] <- "isDEG"
+goi_expr_melt_2_degannot$isDEG[which(goi_expr_melt_2_degannot$isDEGd7 == "isDEG" & goi_expr_melt_2_degannot$Timepoint == "d7")] <- "isDEG"
+
+goi_expr_melt_2_degannot$variable <- gsub(x = goi_expr_melt_2_degannot$variable, pattern = "NEd7", replacement = "")
+goi_expr_melt_2_degannot$variable <- gsub(x = goi_expr_melt_2_degannot$variable, pattern = "NEd4", replacement = "")
+
+library(scales)
+# Load the original RdYlBu palette
+original_palette <- rev(brewer.pal(11, "RdYlBu"))
+# Create a darker version of the palette using muted()
+darker_palette <- muted(original_palette, l = 30, c = 100)
+goi_expr_melt_2_degannot$Timepoint <- gsub(x = goi_expr_melt_2_degannot$Timepoint,pattern = "d7", replacement = "Day7")
+goi_expr_melt_2_degannot$Timepoint <- gsub(x = goi_expr_melt_2_degannot$Timepoint,pattern = "d4", replacement = "Day4")
+

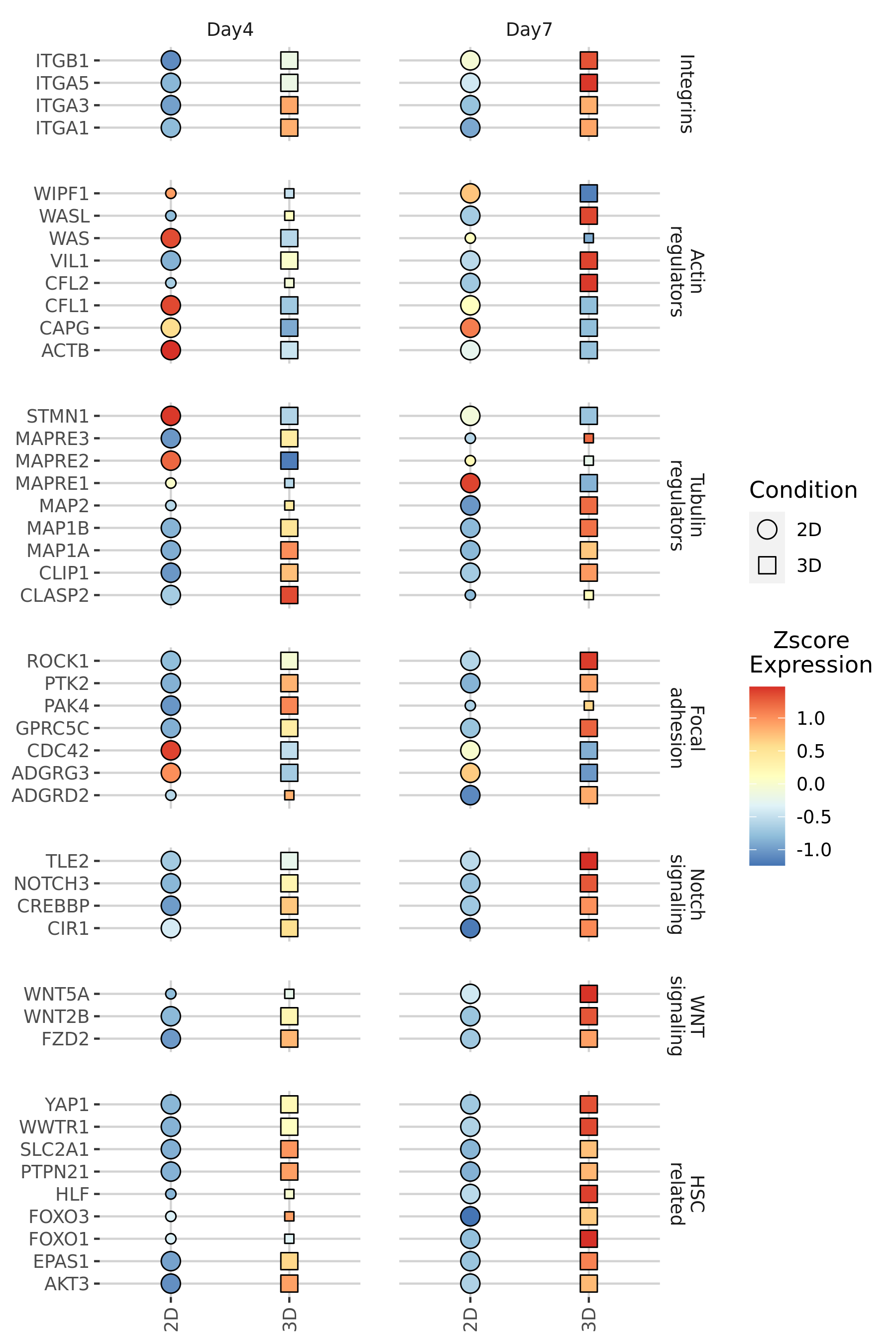

+png(filename = "GOI_dotplot.png", width = 6, height = 9, units = "in", res = 300)
+ggplot(goi_expr_melt_2_degannot, mapping = aes(x = variable, y = Gene, fill = value, shape = Condition)) +
+  scale_shape_manual(values = c(21, 22)) +
+  geom_point(size = 2, show.legend = F) +
+  geom_point(data = subset.data.frame(goi_expr_melt_2_degannot, subset = isDEG == "isDEG"),
+             size = 4, colour = "black") +
+  scale_fill_distiller(palette = "RdYlBu", direction = -1) +
+  facet_grid(Cluster ~ Timepoint, scales = "free",
+             space = "free",
+             labeller = labeller(Cluster = label_wrap_gen(7),
+                                 Timepoint = label_wrap_gen(10))) +
+  labs(fill = "Zscore\nExpression") +
+  theme(axis.text.x = element_text(angle = 90, hjust = 1, vjust = 0.5),
+        legend.title = element_text(hjust = 0.5),
+        panel.background = element_rect(fill = "white"),
+        strip.background = element_blank(),
+        panel.spacing = unit(1.3, "lines"),
+        strip.clip = "off",
+        panel.grid = element_line(colour = "lightgrey"), axis.title = element_blank())
+dev.off()
+
+# Volcano plots - 3D vs 2D  ####
+
+library(dplyr)
+
+exprlist <- list(Day4 = myexpress$deseq$dge_res$`3DNEd4-2DNEd4`,
+                 Day7 = myexpress$deseq$dge_res$`3DNEd7-2DNEd7`)
+
+logfc.thr <- 0.6
+adj.pval.thr <- 0.05
+
+for(tpdata in names(exprlist)){
+
+  volcano_input <- exprlist[[tpdata]]
+  volcano_input <- subset(volcano_input, subset = !is.na(FDR))
+
+  volcano_input$FDR[which(volcano_input$FDR == 0)] <- .Machine$double.xmin
+  df <- data.frame(gene = rownames(volcano_input), pval = -log10(volcano_input$FDR),
+                   lfc = volcano_input$logFC)
+
+  df <- mutate(df, color = case_when(df$lfc > logfc.thr & df$pval > -log10(adj.pval.thr) ~ "Overexpressed",
+                                     df$lfc < -logfc.thr & df$pval > -log10(adj.pval.thr) ~ "Underexpressed",
+                                     abs(df$lfc) < logfc.thr | df$pval < -log10(adj.pval.thr) ~ "NonSignificant"))
+  df <- df[order(df$lfc, decreasing = TRUE),]
+
+  max_x <- ceiling(max(abs(df$lfc)))
+  max_y <- ceiling(max(abs(na.omit(df$pval)))) + 10
+
+  vol <- ggplot(df, aes(x = lfc, y = pval, colour = color)) +
+    theme_bw(base_size = 16) +
+    theme(legend.position = "right") +
+    xlim(c(-max_x,max_x)) +
+    ylim(c(0,max_y)) +
+    xlab("log2 Fold Change") +
+    ylab(expression(-log[10]("adjusted p-value"))) +
+    geom_hline(yintercept = -log10(adj.pval.thr), colour = "darkgray")
+
+  if (logfc.thr > 0) {
+    vol <- vol +
+      geom_vline(xintercept = logfc.thr, colour = "darkgray") +
+      geom_vline(xintercept = -logfc.thr, colour = "darkgray")
+  }
+
+  vol <- vol +
+    geom_point(size = 1, alpha = 0.8, na.rm = T) +
+    scale_color_manual(name = NULL,
+                       values = c(Overexpressed = "#CD4F39",
+                                  Underexpressed = "#0B5394",
+                                  NonSignificant = "darkgray")) +
+    theme(legend.position = "bottom", #c(0.2,0.9),
+          legend.key.height = unit(units = "cm", x = 0.2),
+          legend.key.width = unit(units = "cm", x = 0.2),
+          plot.title = element_text(hjust = 0.5)) +
+    ggtitle(paste0("3D vs 2D ", tpdata))
+

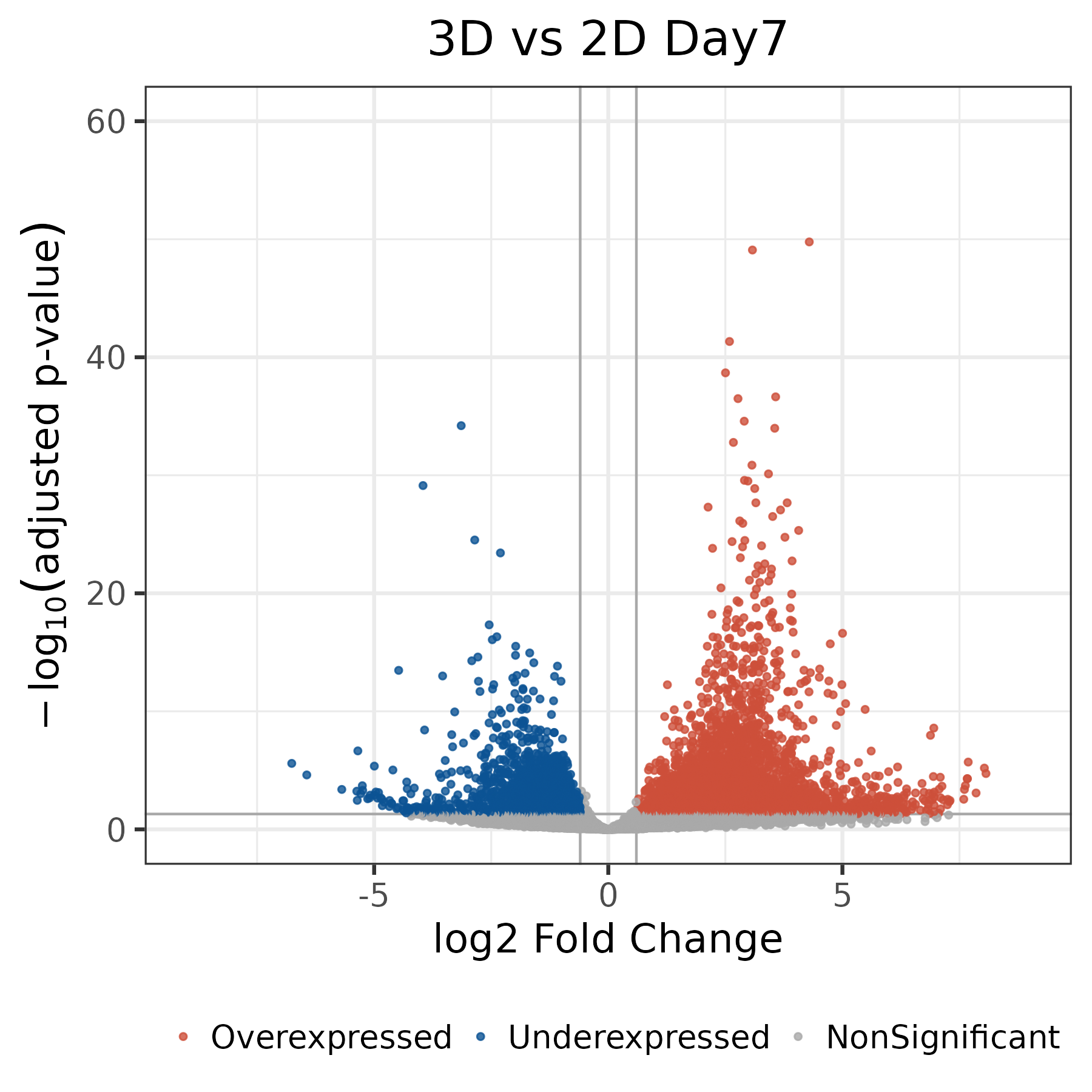

+  ggsave(filename = paste0(tpdata,"_volcano_DEGs.png"),
+         plot = vol,
+         width = 6, height = 6, dpi = 300)
+}
+
